materials

This is a short list of some of the material commonly machined  here at Arizona Precision Industries

PLASTICS

ABS – Scratch resistant, great for its cosmetic value.
ACETAL – It is compared to some metals due to its stability, impact resistance, and strength.
ACRYLIC – Very durable and lightweight with great clarity. Good for displays and other visual applications.
CPVC – Is a thermoplastic produced by chlorination of polyvinyl chloride (PVC) resin.
DELRIN – It is a great all-purpose plastic, very versatile and economical.
ERTALYTE® – Great choice for parts requiring a close tolerance.
G-10 – Great chemical and moisture resistance, excellent insulating and electrical properties, and very high strength composite.
NORYL – Is a plastic developed by General Electric, can be used in electronics, coating, and machinery applications.
NYLON – Excellent abrasion and chemical resistant. Easy to machine.
PEEK – It has a high tensile strength and it has replaced stainless steel in some instances due to its great performance, reliability and low cost.
PHENOLIC – Very light weight, extremely durable plastic, and moisture resistant.
POLYCARBONATE – Virtually unbreakable, transparent glazing material.
UHMW – Impact and abrasion resistant, very affordable.

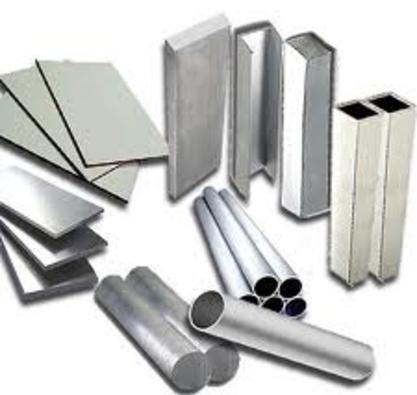

ALUMINUM

6061-0 – Annealed 6061 has maximum tensile strength no more than 18,000 psi.
6061-T4 – T4 temper has an ultimate tensile strength of at least 30,000 psi and yield strength of at least 16,000 psi.
6061-T6 – it is the most commonly used alloy. It has an ultimate tensile strength of at least 42,000 psi and yield strength of at least 35,000 psi.
6063 – Great for extrusions, usually produced with a very smooth surface great for anodizing.
5052 – Very good corrosion resistant, used in marine applications.
7075 – It is aircraft grade. It is strong, with good fatigue strength and average machinability, but not a good corrosion resistant.

STAINLESS STEEL

200 Series – Austenitic iron-chromium-nickel-manganese alloys.
300 Series – Austenitic iron-chromium-nickel alloys.
Type 301 – Highly ductile, for formed products. Fast hardening while is being machined.
Type 303 – Free machining version of 304 via addition of sulfur.
Type 304 – Very popular; also referred as 18/8 stainless steel.
Type 316 – Very common and highly used by the sub sea industry due to its resistance to saltwater.
400 Series – Ferritic and martensitic alloys.
Type 408 – Heat-resistant; poor corrosion resistance; 11% chromium, 8% nickel.
Type 409 – Most affordable one; used in the automobile industry.
Type 410 – Martensitic (high-strength iron/chromium).
Type 420 – Known as “surgical steel”.
Type 430 – Used in vehicle trims, decorative.
Type 440 – Great cutlery quality, better edge retention due to its high carbon content.
600 Series – Mantensitic precipitation hardening alloys.
Type 630 – Better known as 17-4.

MAGNESIUM

Alloy and Form
AZ31 / AZ31B – Rod, Tooling Plate
AZ31B-H24  – Spec Grade – Sheet & Plate Sheet, Plate

STEEL

12L14 – Commonly used in automatic screw machines in the production of high number of parts requiring a close tolerance.

TITANIUM

Ti-6AI-4V – The most common titanium alloy is the Ti-6AI-4V. It is very resistant to corrosion and extreme temperatures. Great tensile strength and toughness. Highly used by the military, aircraft, spacecraft, and in medical applications.

INCONEL®

Typically used in high-temperature applications. Because of work hardening, this metal is very difficult to machine by traditional means.

FOAM

With our 4 axis cnc hot wire foam cutter we can cut most types of foam.

Foam varies according to its cell-structure, combustibility, comfort, density, durability, firmness, flexibility, porosity, resiliency, strength and support.

This information is solely a material reference and we don’t guarantee the accuracy of this information. Arizona precision industries is not liable for any misinterpretation or misuse of this data.
